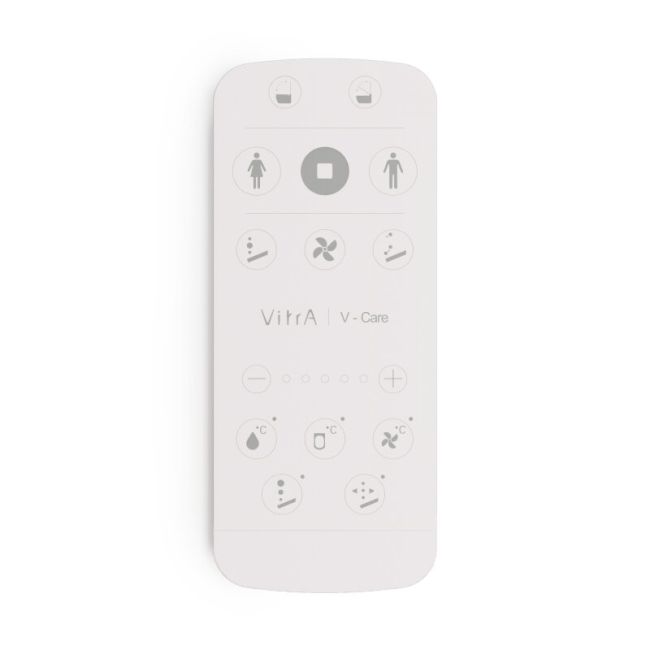

Vitra PRIME REMOTE CONTROL 317100YP1TE V-care Remote controller group ver. 2.0

THINGS TO CHECK • Isn't there a brown out or black out? • Check if you can turn on the unit by pressing STOP/POWER button for 3 seconds. • Is the power switch at the buttom right side of the unit turned on? • Is the water proof connector connected properly?

THINGS TO CHECK Are you sitting on the seat? Remember that you have to be sitting on the seat for washing functions to activate. • Are you seated properly and not leaning too much towards one side? • Is there enough power in your batteries of the remote control? • Isn't the transmitting area of the remote control blocked? • Isn't the receiving area of the main unit blocked?

THINGS TO CHECK • Are the temperature adjustments turned on?(for the water temperature) • Is the unit turned on?(for the seat temperature)

THINGS TO CHECK Is the water pressure in your area strong enough? • Isn't there any unwanted substance stuck in the tip of the nozzles? • Is the water supply valve fully opened? • Isn't the water supply hose(flexible hose) bent? • Is there any unwanted substance stuck in the water-supply valve or hose

THINGS TO CHECK • Is there a leak in the connection between water supply pipe and the main unit? • Is the water supply hose leaking, bent or damaged?

THINGS TO CHECK • Are there enough power left in the remote control batteries? • Are all the batteries properly inserted on the correct polarity? • Are there anything blocking the transmitter or the receiver of the remote • In the next instances, please disconnect the water proof connector and call your service provider for assistance. - The main unit makes beeping alarms and does not function. - The water temperature constantly stays cold even when adjusted to be warm. - When the remote control is dropped in water. - There is a constant leak within the main unit. * Do not interfere the product if there is broken apart. Do not allow water leakage through

Error Code Led Indicator Warning signal beeping sound + Flashing rear washing LED (Left side control unit) Warning signal beeping sound + Flashing front washing LED (Left side control unit) Flashing rear washing LED + Flashing front washing LED (Left side control unit) (Occurs when water tank is not filled properly within 1min 30sec after use) Flashing Power / Stop LED (Left side control unit) LED flashing white (Right side control unit) (Flashing white: Cover damper, Seat Damper) If you see any of the above errors, please contact the authorized service V-Care Prime 7231/431530 (PRIME) V-Care Prime 7232/431530 (PRIME)
